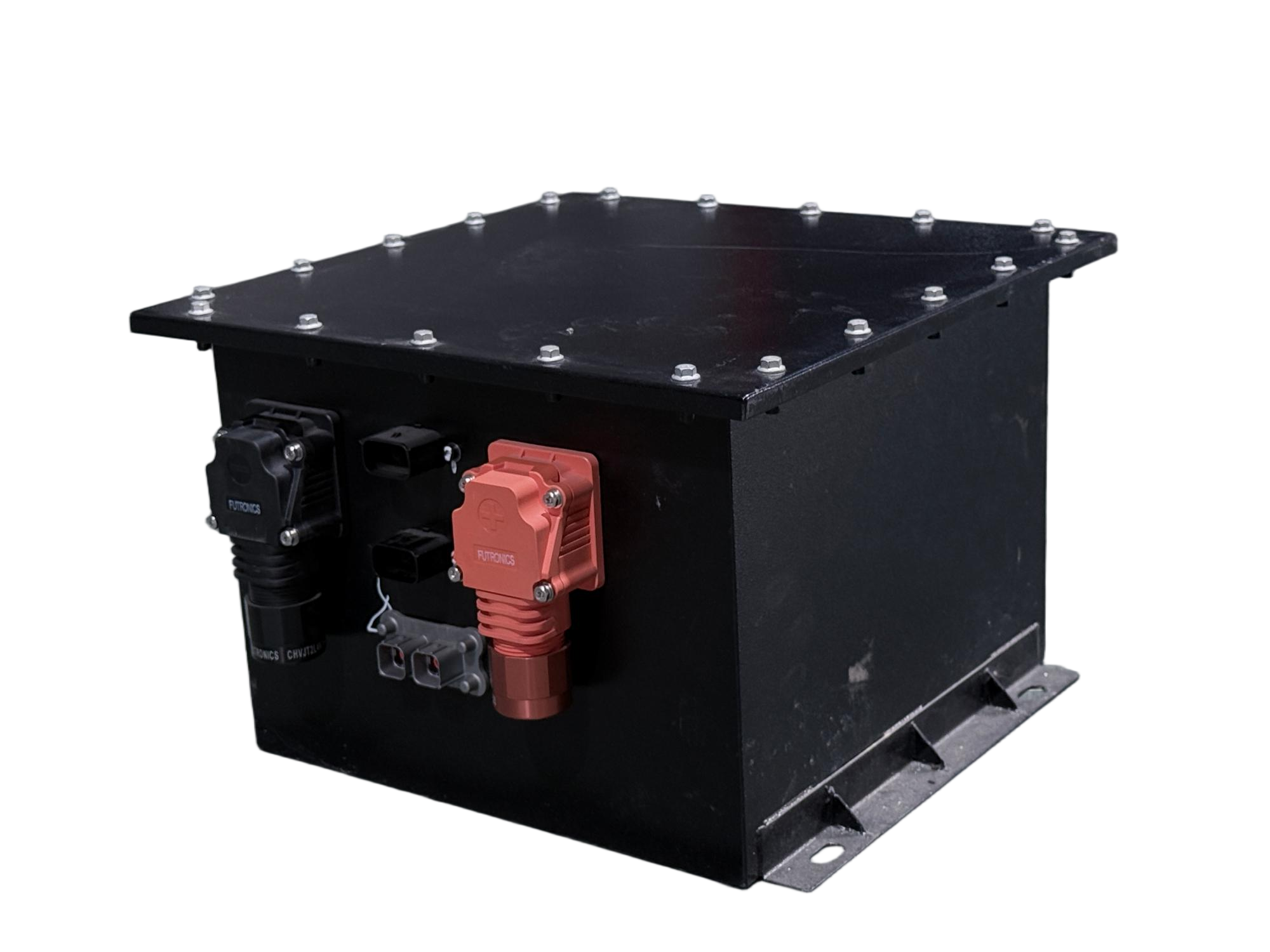

Commercial Vehicle Battery High-Voltage Box
WTC-HB01-S
Integrated high-voltage box for commercial vehicle battery connection and communication routing.
ModelWTC-HB01-S
UnitPiece
ManufacturerShandong Weitongchuang Energy Technology Co., Ltd.
Parameters
| Main Circuit Positive Connector Socket | CHVJT2L4K-C-70 × 1 |
|---|---|
| Main Circuit Negative Connector Socket | CHVJT2L4K-H-70 × 1 |
| Battery Positive Connector Socket | CHVJT2L4K-C-70 × 1 |
| Battery Negative Connector Socket | CHVJT2L4K-H-70 × 1 |
| Heating Positive | REX-1TPBP-2.5-A × 1 |
| Heating Negative | REX-1TPAP-2.5-A × 1 |
| Vehicle Communication Socket | RS4-J12ZY-AH-AS × 1 |
| Battery Communication Socket | RS4-J12ZY-AH-AS × 1 |
| Debug Port | RS4-J12ZY-AH-AS × 1 |
Applications
- Commercial vehicle battery systems
- High-voltage distribution
- Battery communication routing
Highlights
- Main power and communication interfaces integrated in one enclosure
Service Note
5-year warranty from vehicle installation date.
